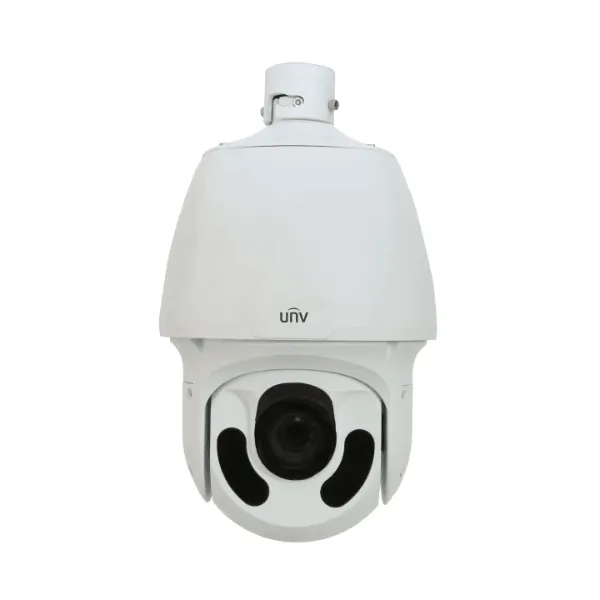

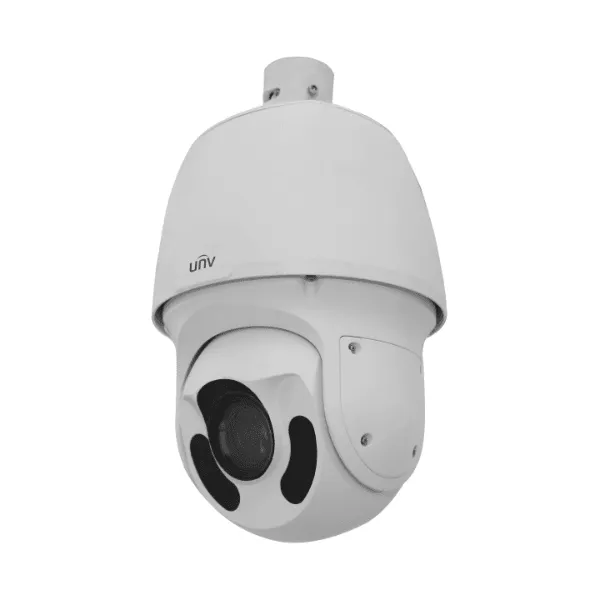

Name: Uniview 2MP PTZ Dome Camera, IPC6222ER-X30P-B
SKU: 1316548

High quality 2 megapixel Uniview ptz dome camera, with smart IR up to 150m and 30X optical zoom.

Model: IPC6222ER-X30P-B

Night Vision | IR 150 Metres| Commercial | 30X Optical Zoom

Features

2MP IR Network PTZ Dome Camera
30x optical zoom
Smart IR up to 150m
ONVIF conformance

Specifications

Camera
Sensor	1/2.8", progressive scan,2.0megapixel, CMOS
Lens	4.5 ~ 135 mm (30x optical zoom) , AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	30
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	4.5mm	69.8		27.9	14		7
	135mm	2094.8		837.9	419		209.5
Angle of View (H)	71.7~ 2.4
Angle of View (V)	43.4~1.3
Angle of View (O)	88.2~2.8
Adjustmentangle	Pan: 0~360		Tilt: 0~90			Rotate:0~360
Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
Minimum Illumination	Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR
Iris	Auto/Manual; F1.5 ~ F4.0
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 150 m (492 ft)
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (19201080):Max. 30 fps; Sub Stream:2MP (19201080):Max. 30 fps; Third Stream: D1 (720576): Max. 30 fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection, auto tracking
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
auto tracking	Tracking the specified target
Recognition:	Face detectionAudio detection
Intelligent Identification	Defocus, Scene Change
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible Integration	ONVIF(Profile S, Profile G),API
Pan & Tilt
Pan Range	360 (endless)
Pan Speed	0.1/s ~ 240/s
	Preset speed: 300/s
Tilt Range	15 ~ 90 (auto reverse)
Tilt Speed	0.1 ~ 160/s
	Preset speed: 240/s
Number of Presets	1024
Patrol	Up to 16 patrols, up to 32 presets per patrol *Note:* The total number of patrols and patterns is 16.
Interface
Audio I/O	Audio cable
	Input: impedance 35 k; amplitude 2 V [p-p]
	Output: impedance 600 ; amplitude 2 V [p-p]
Alarm I/O	1/ 1
Network	1RJ45 10M/100M Base-TX Ethernet
General
Power	24 V AC25%, 24 V DC25%,PoE (PSE Required)
	Power consumption: 9 ~ 42W
Dimensions(xH)	227x359.4 mm (8.9 x 14.2)
Weight	5.28 kg (11.6lb)
Working Environment	40C ~ 65C (-40F ~ 149F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP66
